Drunkard's Walk Maps
About this tutorial
This tutorial is free and open source, and all code uses the MIT license - so you are free to do with it as you like. My hope is that you will enjoy the tutorial, and make great games!
If you enjoy this and would like me to keep writing, please consider supporting my Patreon.
Ever wondered what would happen if an Umber Hulk (or other tunneling creature) got really drunk, and went on a dungeon craving bender? The Drunkard's Walk algorithm answers the question - or more precisely, what would happen if a whole bunch of monsters had far too much to drink. As crazy it sounds, this is a good way to make organic dungeons.
Initial scaffolding
As usual, we'll start with scaffolding from the previous map tutorials. We've done it enough that it should be old hat by now! In map_builders/drunkard.rs, build a new DrunkardsWalkBuilder class. We'll keep the zone-based placement from Cellular Automata - but remove the map building code. Here's the scaffolding:
use super::{MapBuilder, Map,
TileType, Position, spawner, SHOW_MAPGEN_VISUALIZER};
use rltk::RandomNumberGenerator;
use specs::prelude::*;
use std::collections::HashMap;
pub struct DrunkardsWalkBuilder {
map : Map,
starting_position : Position,
depth: i32,
history: Vec<Map>,
noise_areas : HashMap<i32, Vec<usize>>
}
impl MapBuilder for DrunkardsWalkBuilder {
fn get_map(&self) -> Map {
self.map.clone()
}
fn get_starting_position(&self) -> Position {
self.starting_position.clone()
}
fn get_snapshot_history(&self) -> Vec<Map> {
self.history.clone()
}
fn build_map(&mut self) {
self.build();
}
fn spawn_entities(&mut self, ecs : &mut World) {
for area in self.noise_areas.iter() {
spawner::spawn_region(ecs, area.1, self.depth);
}
}
fn take_snapshot(&mut self) {
if SHOW_MAPGEN_VISUALIZER {
let mut snapshot = self.map.clone();
for v in snapshot.revealed_tiles.iter_mut() {
*v = true;
}
self.history.push(snapshot);
}
}
}
impl DrunkardsWalkBuilder {
pub fn new(new_depth : i32) -> DrunkardsWalkBuilder {
DrunkardsWalkBuilder{
map : Map::new(new_depth),
starting_position : Position{ x: 0, y : 0 },
depth : new_depth,
history: Vec::new(),
noise_areas : HashMap::new()
}
}
#[allow(clippy::map_entry)]
fn build(&mut self) {
let mut rng = RandomNumberGenerator::new();
// Set a central starting point
self.starting_position = Position{ x: self.map.width / 2, y: self.map.height / 2 };
let start_idx = self.map.xy_idx(self.starting_position.x, self.starting_position.y);
// Find all tiles we can reach from the starting point
let map_starts : Vec<i32> = vec![start_idx as i32];
let dijkstra_map = rltk::DijkstraMap::new(self.map.width, self.map.height, &map_starts , &self.map, 200.0);
let mut exit_tile = (0, 0.0f32);
for (i, tile) in self.map.tiles.iter_mut().enumerate() {
if *tile == TileType::Floor {
let distance_to_start = dijkstra_map.map[i];
// We can't get to this tile - so we'll make it a wall
if distance_to_start == std::f32::MAX {
*tile = TileType::Wall;
} else {
// If it is further away than our current exit candidate, move the exit
if distance_to_start > exit_tile.1 {
exit_tile.0 = i;
exit_tile.1 = distance_to_start;
}
}
}
}
self.take_snapshot();
// Place the stairs
self.map.tiles[exit_tile.0] = TileType::DownStairs;
self.take_snapshot();
// Now we build a noise map for use in spawning entities later
let mut noise = rltk::FastNoise::seeded(rng.roll_dice(1, 65536) as u64);
noise.set_noise_type(rltk::NoiseType::Cellular);
noise.set_frequency(0.08);
noise.set_cellular_distance_function(rltk::CellularDistanceFunction::Manhattan);
for y in 1 .. self.map.height-1 {
for x in 1 .. self.map.width-1 {
let idx = self.map.xy_idx(x, y);
if self.map.tiles[idx] == TileType::Floor {
let cell_value_f = noise.get_noise(x as f32, y as f32) * 10240.0;
let cell_value = cell_value_f as i32;
if self.noise_areas.contains_key(&cell_value) {
self.noise_areas.get_mut(&cell_value).unwrap().push(idx);
} else {
self.noise_areas.insert(cell_value, vec![idx]);
}
}
}
}
}
}
We've kept a lot of the work from the Cellular Automata chapter, since it can help us here also. We also go into map_builders/mod.rs and once again force the "random" system to pick our new code:
pub fn random_builder(new_depth: i32) -> Box<dyn MapBuilder> {
/*let mut rng = rltk::RandomNumberGenerator::new();
let builder = rng.roll_dice(1, 4);
match builder {
1 => Box::new(BspDungeonBuilder::new(new_depth)),
2 => Box::new(BspInteriorBuilder::new(new_depth)),
3 => Box::new(CellularAutomotaBuilder::new(new_depth)),
_ => Box::new(SimpleMapBuilder::new(new_depth))
}*/
Box::new(DrunkardsWalkBuilder::new(new_depth))
}
Don't Repeat Yourself (The DRY principle)
Since we're re-using the exact code from Cellular Automata, we should take the common code and put it into map_builders/common.rs. This saves typing, saves the compiler from repeatedly remaking the same code (increasing your program size). So in common.rs, we refactor the common code into some functions. In common.rs, we create a new function - remove_unreachable_areas_returning_most_distant:
/// Searches a map, removes unreachable areas and returns the most distant tile.
pub fn remove_unreachable_areas_returning_most_distant(map : &mut Map, start_idx : usize) -> usize {
let map_starts : Vec<i32> = vec![start_idx as i32];
let dijkstra_map = rltk::DijkstraMap::new(map.width, map.height, &map_starts , map, 200.0);
let mut exit_tile = (0, 0.0f32);
for (i, tile) in map.tiles.iter_mut().enumerate() {
if *tile == TileType::Floor {
let distance_to_start = dijkstra_map.map[i];
// We can't get to this tile - so we'll make it a wall
if distance_to_start == std::f32::MAX {
*tile = TileType::Wall;
} else {
// If it is further away than our current exit candidate, move the exit
if distance_to_start > exit_tile.1 {
exit_tile.0 = i;
exit_tile.1 = distance_to_start;
}
}
}
}
exit_tile.0
}
We'll make a second function, generate_voronoi_spawn_regions:
/// Generates a Voronoi/cellular noise map of a region, and divides it into spawn regions.
#[allow(clippy::map_entry)]
pub fn generate_voronoi_spawn_regions(map: &Map, rng : &mut rltk::RandomNumberGenerator) -> HashMap<i32, Vec<usize>> {
let mut noise_areas : HashMap<i32, Vec<usize>> = HashMap::new();
let mut noise = rltk::FastNoise::seeded(rng.roll_dice(1, 65536) as u64);
noise.set_noise_type(rltk::NoiseType::Cellular);
noise.set_frequency(0.08);
noise.set_cellular_distance_function(rltk::CellularDistanceFunction::Manhattan);
for y in 1 .. map.height-1 {
for x in 1 .. map.width-1 {
let idx = map.xy_idx(x, y);
if map.tiles[idx] == TileType::Floor {
let cell_value_f = noise.get_noise(x as f32, y as f32) * 10240.0;
let cell_value = cell_value_f as i32;
if noise_areas.contains_key(&cell_value) {
noise_areas.get_mut(&cell_value).unwrap().push(idx);
} else {
noise_areas.insert(cell_value, vec![idx]);
}
}
}
}
noise_areas
}
Plugging these into our build function lets us reduce the boilerplate section considerably:
// Find all tiles we can reach from the starting point
let exit_tile = remove_unreachable_areas_returning_most_distant(&mut self.map, start_idx);
self.take_snapshot();
// Place the stairs
self.map.tiles[exit_tile] = TileType::DownStairs;
self.take_snapshot();
// Now we build a noise map for use in spawning entities later
self.noise_areas = generate_voronoi_spawn_regions(&self.map, &mut rng);
In the example, I've gone back to the cellular_automata section and done the same.
This is basically the same code we had before (hence, it isn't explained here), but wrapped in a function (and taking a mutable map reference - so it changes the map you give it, and the starting point as parameters).
Walking Drunkards
The basic idea behind the algorithm is simple:
- Pick a central starting point, and convert it to a floor.
- We count how much of the map is floor space, and iterate until we have converted a percentage (we use 50% in the example) of the map to floors.
- Spawn a drunkard at the starting point. The drunkard has a "lifetime" and a "position".
- While the drunkard is still alive:
- Decrement the drunkard's lifetime (I like to think that they pass out and sleep).
- Roll a 4-sided dice.
- If we rolled a 1, move the drunkard North.
- If we rolled a 2, move the drunkard South.
- If we rolled a 3, move the drunkard East.
- If we rolled a 4, move the drunkard West.
- The tile on which the drunkard landed becomes a floor.
That's really all there is to it: we keep spawning drunkards until we have sufficient map coverage. Here's an implementation:
// Set a central starting point
self.starting_position = Position{ x: self.map.width / 2, y: self.map.height / 2 };
let start_idx = self.map.xy_idx(self.starting_position.x, self.starting_position.y);
self.map.tiles[start_idx] = TileType::Floor;
let total_tiles = self.map.width * self.map.height;
let desired_floor_tiles = (total_tiles / 2) as usize;
let mut floor_tile_count = self.map.tiles.iter().filter(|a| **a == TileType::Floor).count();
let mut digger_count = 0;
let mut active_digger_count = 0;
while floor_tile_count < desired_floor_tiles {
let mut did_something = false;
let mut drunk_x = self.starting_position.x;
let mut drunk_y = self.starting_position.y;
let mut drunk_life = 400;
while drunk_life > 0 {
let drunk_idx = self.map.xy_idx(drunk_x, drunk_y);
if self.map.tiles[drunk_idx] == TileType::Wall {
did_something = true;
}
self.map.tiles[drunk_idx] = TileType::DownStairs;
let stagger_direction = rng.roll_dice(1, 4);
match stagger_direction {
1 => { if drunk_x > 2 { drunk_x -= 1; } }
2 => { if drunk_x < self.map.width-2 { drunk_x += 1; } }
3 => { if drunk_y > 2 { drunk_y -=1; } }
_ => { if drunk_y < self.map.height-2 { drunk_y += 1; } }
}
drunk_life -= 1;
}
if did_something {
self.take_snapshot();
active_digger_count += 1;
}
digger_count += 1;
for t in self.map.tiles.iter_mut() {
if *t == TileType::DownStairs {
*t = TileType::Floor;
}
}
floor_tile_count = self.map.tiles.iter().filter(|a| **a == TileType::Floor).count();
}
println!("{} dwarves gave up their sobriety, of whom {} actually found a wall.", digger_count, active_digger_count);
This implementation expands a lot of things out, and could be much shorter - but for clarity, we've left it large and obvious. We've also made a bunch of things into variables that could be constants - it's easier to read, and is designed to be easy to "play" with values. It also prints a status update to the console, showing what happened.

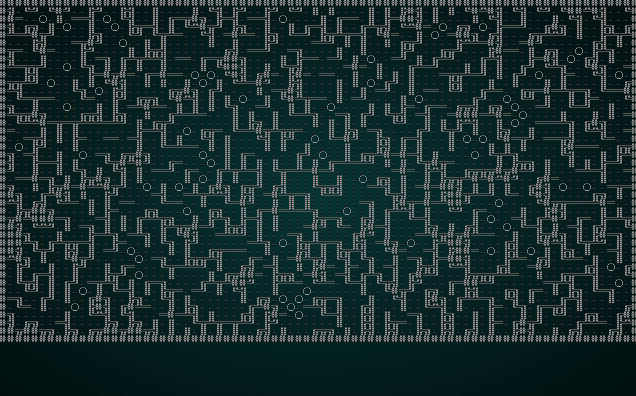

If you cargo run now, you'll get a pretty nice open map:
.
The source code for this chapter may be found here
Run this chapter's example with web assembly, in your browser (WebGL2 required)
